Set-top box product certification testing
Details
I. Introduction to Set-top Box Certified Products
A set-top box refers to a digital video conversion box. It is usually called a set-top box or a set-top box, which is a device that connects a television to an external signal source. It can convert compressed digital signals into TV content and display it on the television. Signals can come from wired cables, satellite antennas, broadband networks and terrestrial broadcasting. The function introduction of the digital video conversion box: The interactive function set-top box needs to provide two types of interactive functions: interactive content selection and content interactive control.

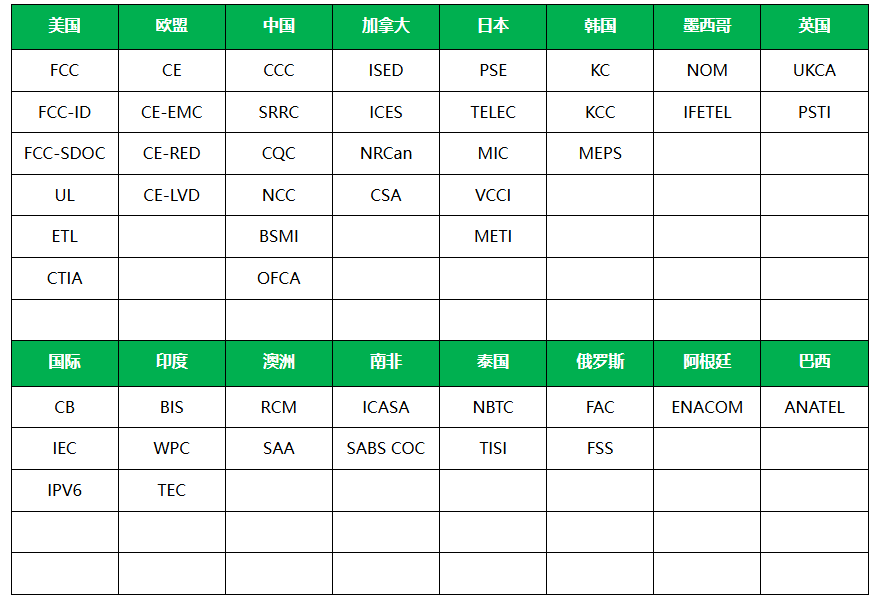

Ii. Global Certification and Testing Services for Set-top Box Products (Partial List)
Iii. EMC Electromagnetic Compatibility Testing Items & Testing Capabilities for Set-top Box Products
Testing items Radiation (RE)10m Radiation (RE)3m, radiation immunity (RS), radiation spurivity (RSE), Conduction (CE), conduction immunity (CS), disturbance power (DP), three-loop antenna (3Loop), lightning (SURGE), electrostatic discharge (ESD), Electrical Fast Transient burst (EFT), voltage Sag & Short Interruption (DIP), harmonic flicker (H) &F) Three-phase, power frequency magnetic field (MS), Click sound...
Detection capability: Conduction (CE) three-phase: 380V /200A, Radiation (RE)3m single/three-phase: 32A, Radiation (RE)10m three-phase: 380V /200A,DC 1000V/200A, RS field strength: 20V /m, CS field strength: 15V, ESD ±30 kV, Surge: 8 kV...
Iv. RF Wireless Radio frequency Testing Items & Testing Capabilities for Set-top Box Products
Testing items: Transmission power, power spectral density, occupancy time, duty cycle, adaptive, channel interval, occupied bandwidth, frequency stability, modulation bandwidth, transmission spurring, reception spurring, in-band spurring, reception blocking and bit error rate, dynamic frequency selection, sensitivity, peak power to average power ratio, electromagnetic field EMF...
Detection capabilities: BT/BLE, SRD (433 MHz etc), WIFI 2.4 GHz, WIFI 5 GHz(including DFS radar), Communication 2,3,4G(SISO), WIFI 6E 8*8 MIMO, WIFI 7 16*16 MIMO...

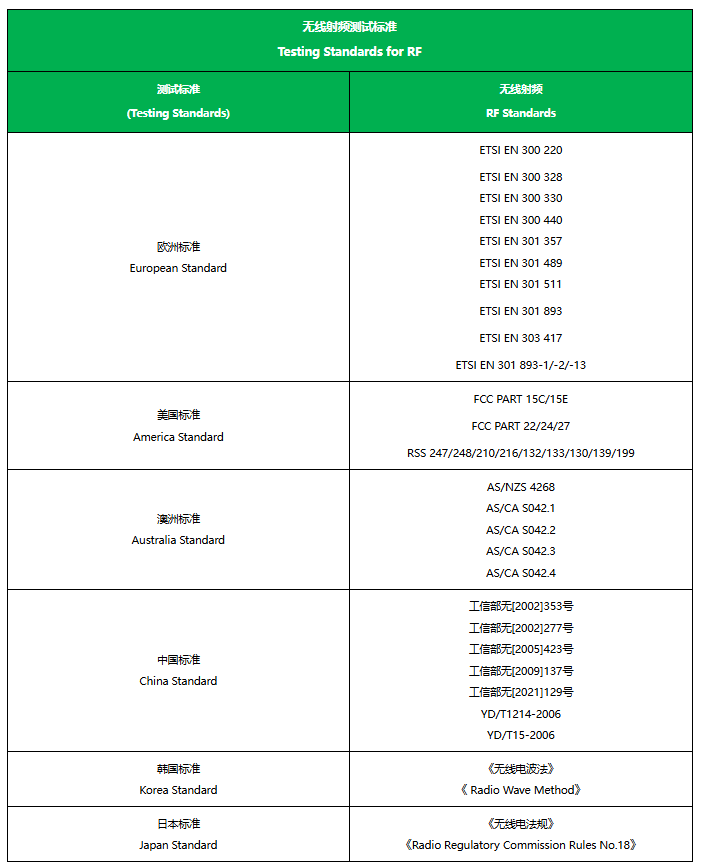

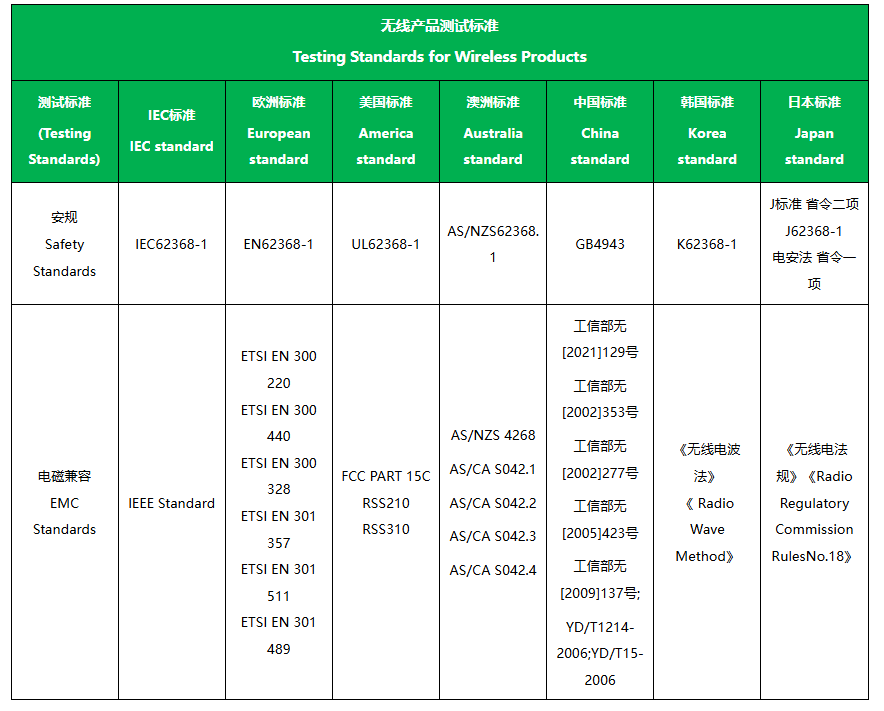

V. EMC Electromagnetic Compatibility &RF Wireless Radio Frequency & Safety Regulations Standards
