FCC ID Certification
Details

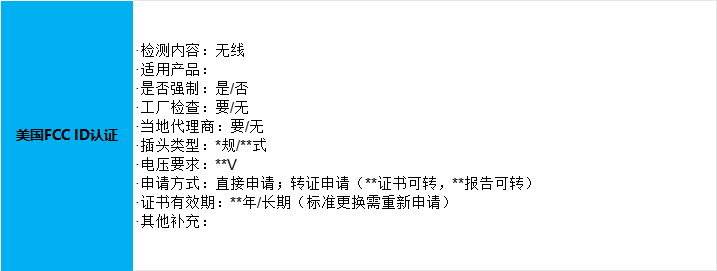

I. Introduction to Certification
FCC certification is a mandatory certification in the United States for electromagnetic compatibility and radio frequency. Generally, wireless products need to obtain an ID type when undergoing FCC certification. That is what we often call FCC-ID CERTIFICATION (FCC CERTIFICATION).
Ii. Product Scope
Wireless products, such as Bluetooth products, tablet computers, wireless keyboards, wireless mice, wireless readers, wireless transceivers, 2G mobile phones, 3G mobile phones, 3.5G mobile phones, DECT mobile phones (1.8G and 1.9G frequency bands), wireless walkie-talkies, etc

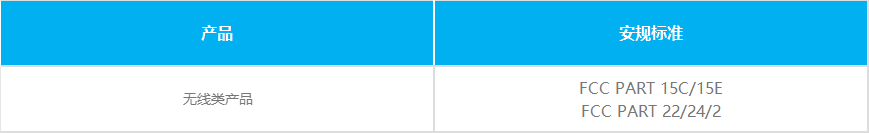

Iii. Certification Standards
Iv. Test Items
1. Transmitted harassment
2. Radiation harassment
3. Maximum output power
Limit value: Less than or equal to 21dbm or 30dbm
4.20db bandwidth
Limit value: None
5. Channel spacing
Limit: >25KHz or >two-thirds of the 20 dB bandwidth
6. Number of frequency-hopping channels
Limit: ≥15 channels
7. Duration of stay
Limit: < 0.4 seconds
8. Sideband
9. Antenna requirements
V. Required Documents
1.731 Application Form
2.FCC ID number
3.FCC authorization letter, FCC confidentiality letter
4. Block diagrams and circuit diagrams
5. Line description
6. User manual and technical specification sheet
7. Product nameplates and other information
Vi. Sample Requirements
One RF fixed-frequency prototype and one ordinary prototype.
2. Fixed-frequency prototypes are for multi-channel working products. If it is a single-channel prototype, please provide a continuous transmission prototype.

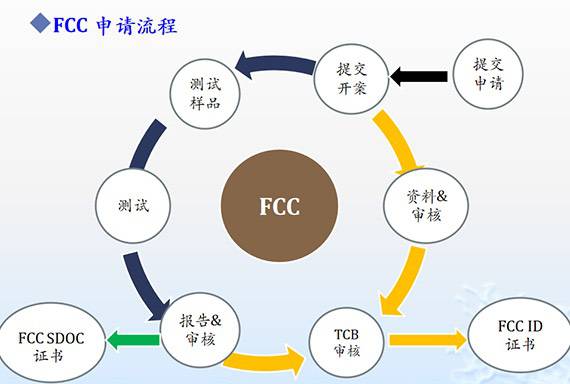

Vii. Certification Process
Viii. Certification Mark
